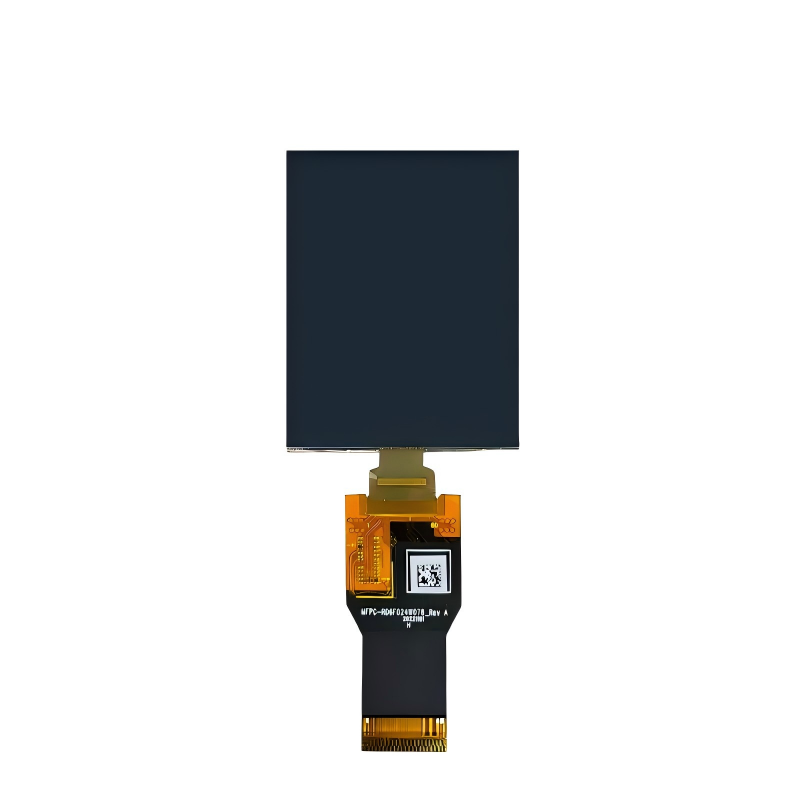

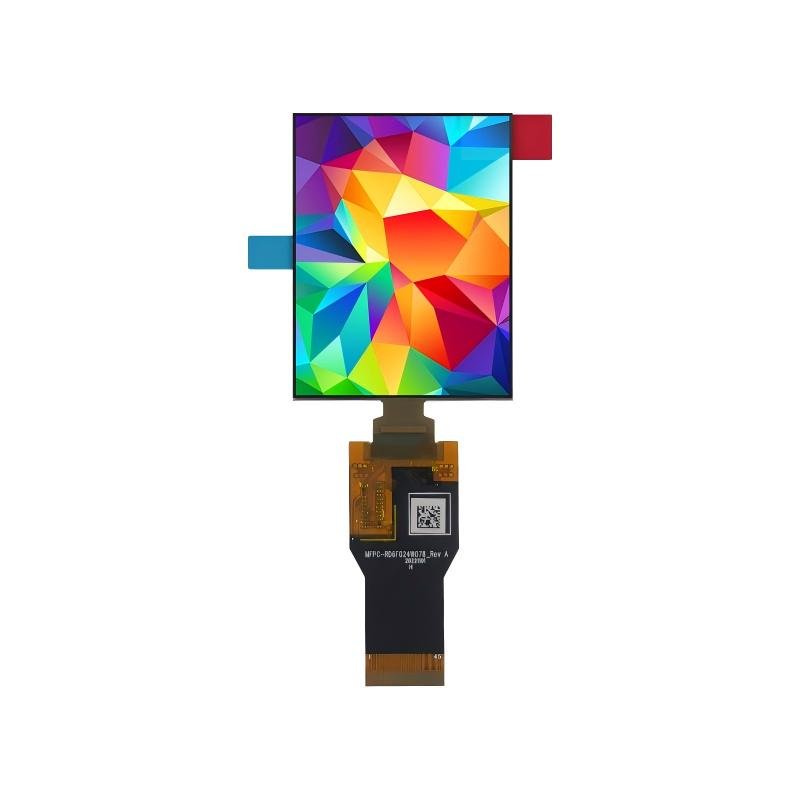

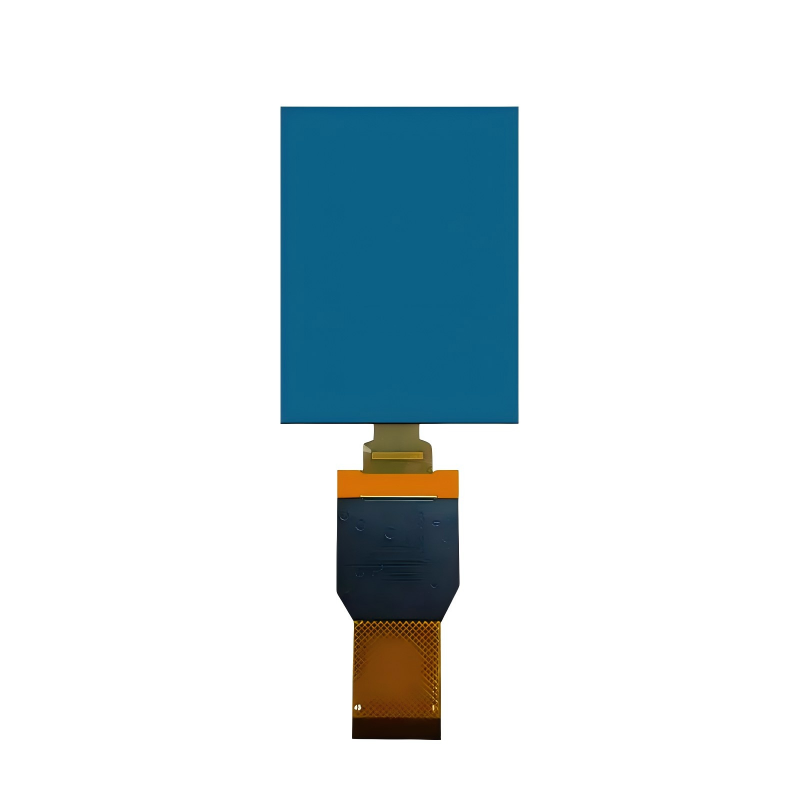

2.4inch Smarthome OLED Display 450*600 800nit AMOLED Screen Module

Category

Display model GL240AMN10A  is a color-active matrix thin film transistor(AMOLED)liquid crystal display with a capacitive touchscreen that uses amorphous silicon TFT as a switching device. This OLED Display has a 2.4-inch diagonally measured active area with 450RGBx600 resolutions (600 horizontal by 450 vertical pixel arrays). Each pixel is divided into RED, GREEN, and BLUE dots. This module displays terminals for sports cameras and smart homes.

Additional information

Outline Dimension

38.72mm(H)*51.56mm(V)*0.5mm(T)

Active Area

36.72mm(H)*48.96mm(V)

OLED Interface

SPI/MCU/MIPI

Driver IC

RM690B0

Viewing Angle

IPS

Brightness

800cd/m2

Application

Smart home

Product Details





Display model GL240AMN10A  is a color-active matrix thin film transistor(AMOLED)liquid crystal display with a capacitive touchscreen that uses amorphous silicon TFT as a switching device. This OLED Display has a 2.4-inch diagonally measured active area with 450RGBx600 resolutions (600 horizontal by 450 vertical pixel arrays). Each pixel is divided into RED, GREEN, and BLUE dots. This module displays terminals for sports cameras and smart homes.



  • Product Features:
ItemSpecificationsUnit
Diagonal Inch0.39inch
Display TypeRigid AMOLED
Number of dots450RGB*600dots
View DirectionIPS
Panel Outline38.72*51.56*0.5mm
Active Area36.72*48.96mm
Display Colors16.7M(24bit)
InterfaceMIPI,MIPI+I2C
Brightness300cd/m2
Driver IC (Type)RM690B0
Driver IC/ RAM Size1/3RAM
InterfaceSPI/MCU/MIPI
Frame rate60Hz
Contrast ratio100000:1
Brightness800cd/m2
Operation Temperature-20~+80deg
Storage Temperature-40~+80deg
Match FPC ConnectorMolex 502598-4591
PPI311



  • Product Application:
  1. Sports cameras
  2. Automotive
  3. Smart home
  4. Advanced driver-assistance systems (ADAS)
  5. Measurement Tool
