The LP133QX1 is a Color Active Matrix Organic Light Emitting Diode Display (OLED). The matrix employs Low Temperature Poly Si Transistor as the active element. It is a top emission display type. It has a 13.3inch diagonally measured active display area with QXGA resolution (1536 horizontal by 2048 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-pixels.. Gray scale or the brightness of the sub pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors. The LP133QX1 has been designed to apply the interface method that enables high speed, low EMI, eDP interface with PSR. The LP133QX1 is intended to support applications where thin thickness, high contrast ratio, high color gamut. The LP133QX1 characteristics provide an excellent foldable display for Portable or Monitor mode such as tablet or notebook PC.
| Item No. | LP133QX1 |
|---|---|
| MOQ | 1set |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Production |
1. Introduction
The LP133QX1 is a Color Active Matrix Organic Light Emitting Diode Display (OLED). The matrix employs Low Temperature Poly Si Transistor as the active element. It is a top emission display type. It has a 13.3inch diagonally measured active display area with QXGA resolution (1536 horizontal by 2048 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-pixels.. Gray scale or the brightness of the sub pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors. The LP133QX1 has been designed to apply the interface method that enables high speed, low EMI, eDP interface with PSR. The LP133QX1 is intended to support applications where thin thickness, high contrast ratio, high color gamut. The LP133QX1 characteristics provide an excellent foldable display for Portable or Monitor mode such as tablet or notebook PC.
2. Warranty:
Basically, warranty term is 12 months of reliability characteristics of the quality level after the outgoing date in our company and we could compensate for defectives which happen within warranty term under the condition that the products should be stored or be used as specified under normal condition within the contents of the specification.
Otherwise, it is impossible to compensate for defectives when they happen to customer’s mistakes such as careless handling or circuit change, etc. And after 12 months of the warranty term, all replacements for defectives will be charged.

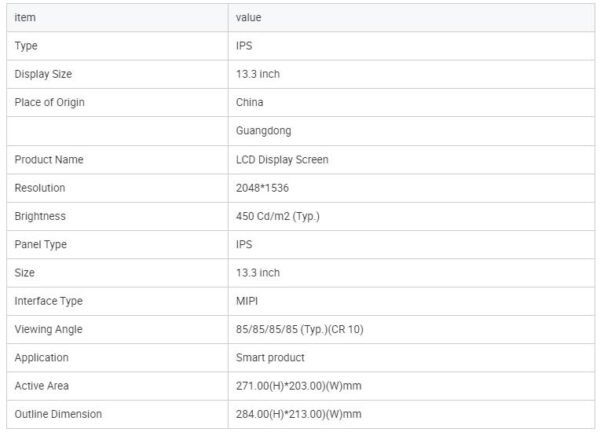

3. Product Features:
4. Application:
G&L has devoted itself to the manufacturing and development of high-quality products for the Wearable TFT LCD and IOT LCD Displays 0.39inch to 13.3inch Small TFT LCD, Round Circular TN IPS TFT LCD Display, Square TFT LCD, Transflective& Reflective& Sunlight readable TFT LCD Displays, Resistive Touchscreen, Capacitive Touch Panel, OLED Display, and PMOLED LCD Modules, OEM&ODM Customization Solutions.
As a Professional Manufacturer Of small & medium-sized displays, we have manufactured color TFT LCDs Displays of more than 150 models, including 1.09inch round LCD display 240*240, 1.28inch round LCD module, 1.54inch RGB LCD Screen 240*240, 1.6inch QSPI 400*400 LCD Display, 2.1inch and 2.76inch round automotive LCD panel to meet the different requirements for the customers all over the world.
We provide LCD Customization such as FPC design, Capacitive Touchscreen & Resistive Touch Panel, Backlight, and HDMI Driver Board solutions to meet customers’ requests. Free accessories such as Connectors, Cables, and Small breakout boards can be provided, and a three to five years long-term supply is available.
G&L Display is an ISO approved for both quality ISO9001 and environment ISO14001, RoHS certificated manufacturer. As a leading manufacturer in the small TFT display modules market, Toppop will continue to dedicate the research & development, and design, of new technology of LCD, TFT, and OLED displays Solutions.
G&L Electronics is not only a China Small Color TFT LCD Screen Display Manufacturer but also an OLED display sourcing company. Our main products include a 0.39-inch BOE OLED AMOLED microdisplay & a 0.71-inch SONY micro OLED Screen, and 1.2-inch and 1.39-inch full round AMOLED displays with touchscreen.
We also expanding our product range to flexible OLED screens as well as a transparent OLED display. We have to say, you can find a variety of different displays in our company. Most of our products are widely used in wearable devices, the automotive industry, smart homes, intelligent robots, handheld devices, communication devices, and home security systems. All developed products have passed CE, ROHS, and other certifications.
A: Testing Board
B: Extension Cable
C: Dupont Cable
D: Plug in Connector
E: Board to Board Connector
F: Transferring Board Connector
1) Appearance can be designed in an arc, rectangle, square, L shape,S shape, etc..free bending, coiling, folding, can be arbitrarily arranged in accordance with the spatial layout requirements, adopt electrolytic copper or copper rolling process design with very good electrical conductivity;
2) FPC interfaces include soldering, plug-in, and B2B connection, the reinforcement materials we commonly use include PI, PET, FR4, steel sheet, aluminum sheet, and so on, which can be selected according to different applications environments.
1) The appearance of the plastic frame can be designed in rectangle, square,round, heterogenic,etc…;
2) The thickness can be designed according to the customer’s requirement;
3) The material is fire retardant PC (URZ2510), adopt PC on light guide plate (LC-1500);
4) All films adopted 3m material;
5) Imported LED common brands(Samsung,Poly);
6) Can add upper and nether iron frame for antistatic design;
7) The brightness can be customized from 100cd/m2 to 1200cd/m2,average life is more than 40000 hours.
1) The shape of the cover panel can be designed in rectangle,square, round, heterogenic, etc…;
2) LOGO can be customized in various sizes and colors;
3) The flat surface can be customized in anti-glare and anti-fingerprint;
4) The materials of glass we can use Corning, Japan Asahi Glass as customer’s demand;
5) For functions, we can customize single point and multi-point touch;
6) Common drivers IC normally we use for FPC of the touch panel are FT and ILI;
7) About interface, commonly adopt the I2C interface definition and USB;
8) For Joint, we adopt OCA laminating for accurate assembling.
Outline dimension, resolution, thickness, viewing angle(TN/IPS), transmissive, or transflective can be customized as the customer’s requirements.
